FOR HYDRO POWER GENERATION

For Hydro Power Generation

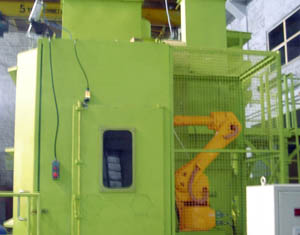

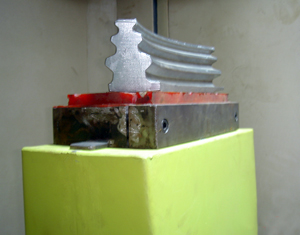

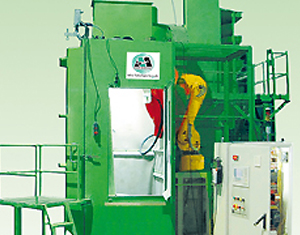

This is a Shot Peening cabinet, with an acoustical enclosure and 6 axes industrial robot for Shot Peening of turbine blades. The machine is fully programmable. A turn table interpolates with the industrial robot and provides 7 an adjustable axis. The nozzle is mounted on the robot arm to provide even intensity and coverage over the width, length and height of the part envelope.

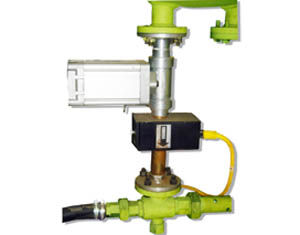

A special cloth is provided to protect the robot arm. From the enclosure, shots are conveyed by reclaimer / cyclone to remove dust and other contaminants, the media is passed through two stage classifications. At the first stage, size classifier separates the media according to its size. After size classification, media is transported by bucket elevator to second stage "shape separators." Thus the media with a perfect spherical shape is passed to double chamber (continuous pots) peening machine.
