AIRLESS SHOT PEENING MACHINE FOR SPRINGS

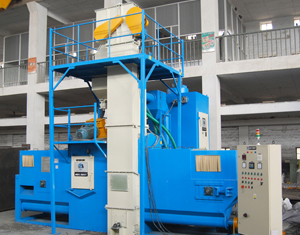

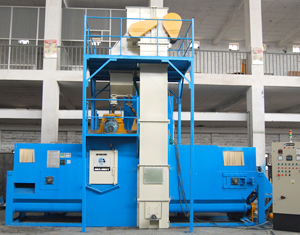

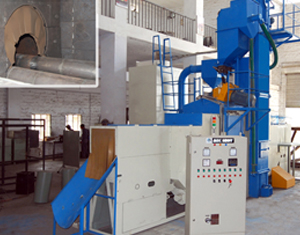

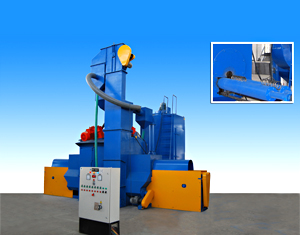

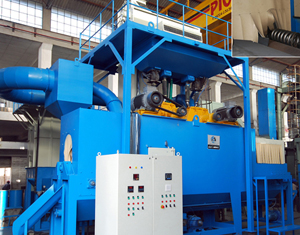

Airless Shot Peening Machine for Springs
The machine is fully automatic. The operator has to place the coil springs over the adjustable leaner rollers on which it rotates and moves forward. The springs enter in the cabinet where a pair of wheels shot peen the coil springs.

After selecting the peening switch the shots will be fed automatically by sound-abrator valves for both the wheels operated by solenoid valve and pneumatic cylinders, opening the mechanism. Shots are propelled on the rotating coil springs at high velocity thereby peening it. Dust generated during peening is sucked with media or shots in a media trap where shots are separated from the fine dust.

The dust further passes in the dust collector and gets trapped in filter bags. Clean air is let out in the atmosphere there by keeping the environment eco friendly.
