END DRAFT TYPE

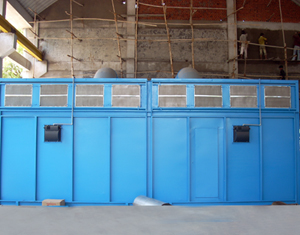

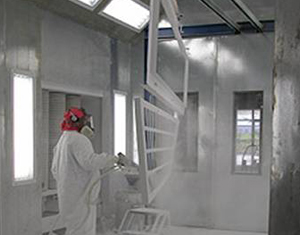

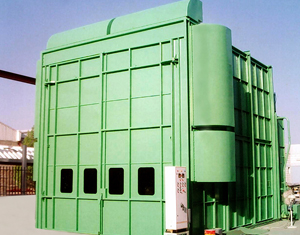

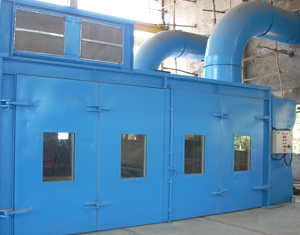

The End Draft (the direction of flow of air is towards the floor of spray booth) Paint Spray Booth is suitable for conventional, air-less and electrostatic spray painting and its consists of painting chamber, Inlet Air Filter, Paint Trap Filters, axial flow Fan, electric motor, duct and canopy etc.

The design of the paint booth will be of End Draft type paint booth with disposable paint trap filters on floor. The intake air into the paint booth is filtered by intake filter to avoid foreign particle deposition on the painted surface. The intake air is sucked into the room by the extraction modules located on the back wall.

Functions:

• Maintains dust level to minimum, prevents spreading of paint and maintains clean air at the operators breathing level.
• Collects over sprayed paint, solid and discharge solvent fumes outside the building.
• Reduces the fire hazard.
