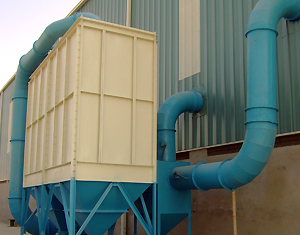

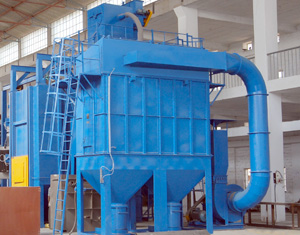

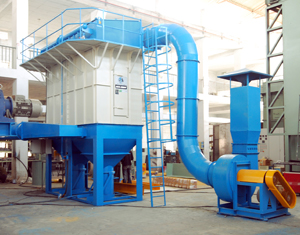

PLEATED BAG DUST COLLECTOR

How it works

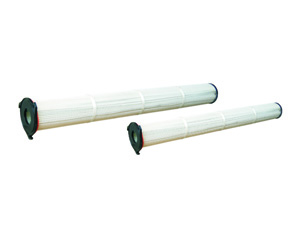

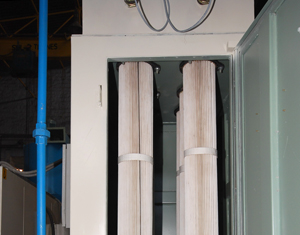

The dust laden air is drawn into the dust collector through an inlet due to suction created by exhaust fan and passes through pleated bag elements. The abrasive resistant inlet promotes dropping out high particulate and generates uniform air flow. Thus, it increases the filter life. The dust gets deposited on the outer surface of pleated bag and clean air flows through the center passage of the pleated bag into a clean air plenum.

Clean air is then released into the atmosphere through an outlet duct. A pleated bag is periodically and automatically cleaned through air purging. A sequence circuit activates solenoid valves for high pressure air purging of a pre selected pleated bag. Dust released from pleated bags slides downward into the hopper for further collection into the dustbin.

Special Features:

• Fair air to filter ratios.
• Assures longer life of cartridges.
• Variety of material.
• Cartridges are normally of synthetic webbed material. However, other materials can be supplied to suit individual application.
• Modular design with no moving parts.
