ASH ‘Y’ Hanger Type

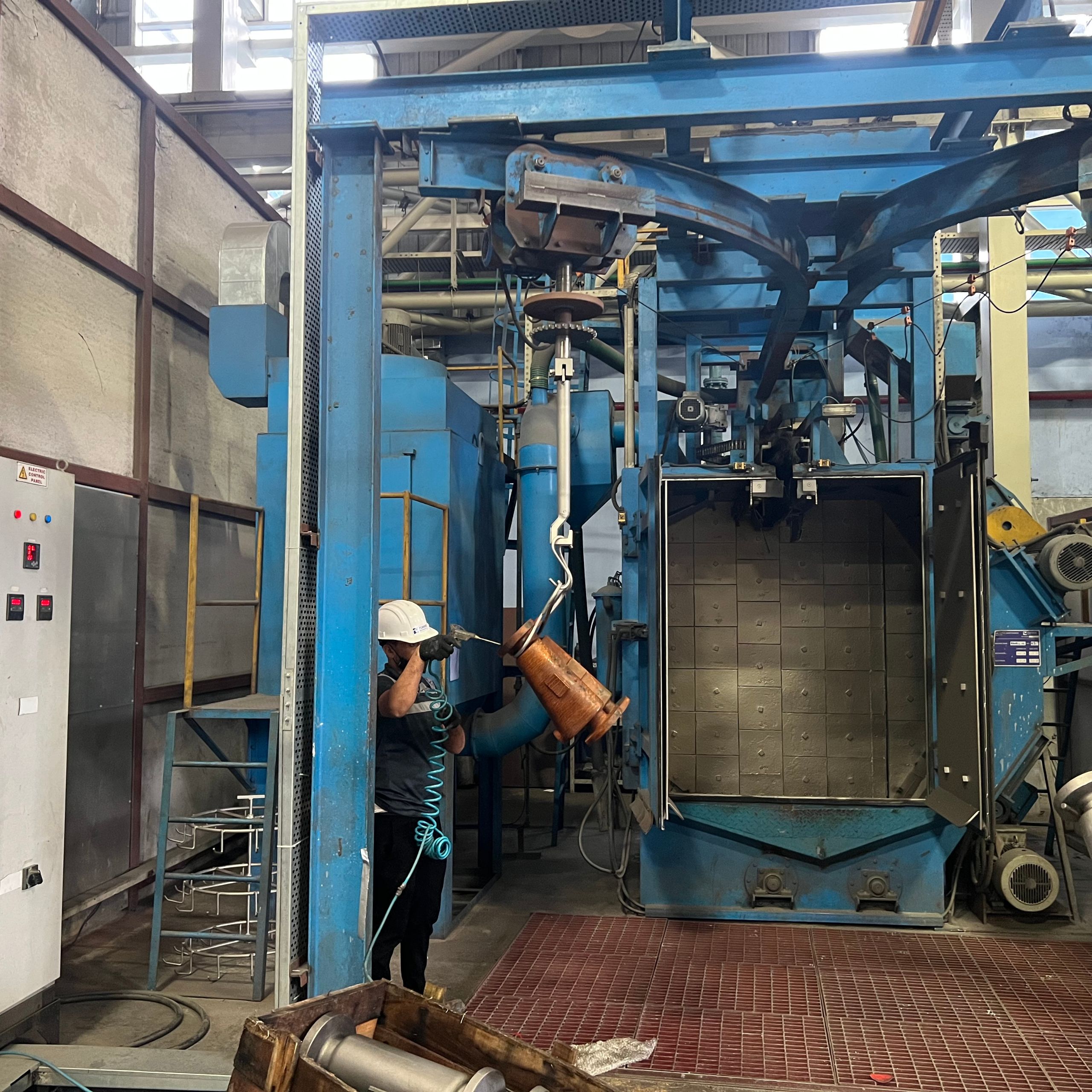

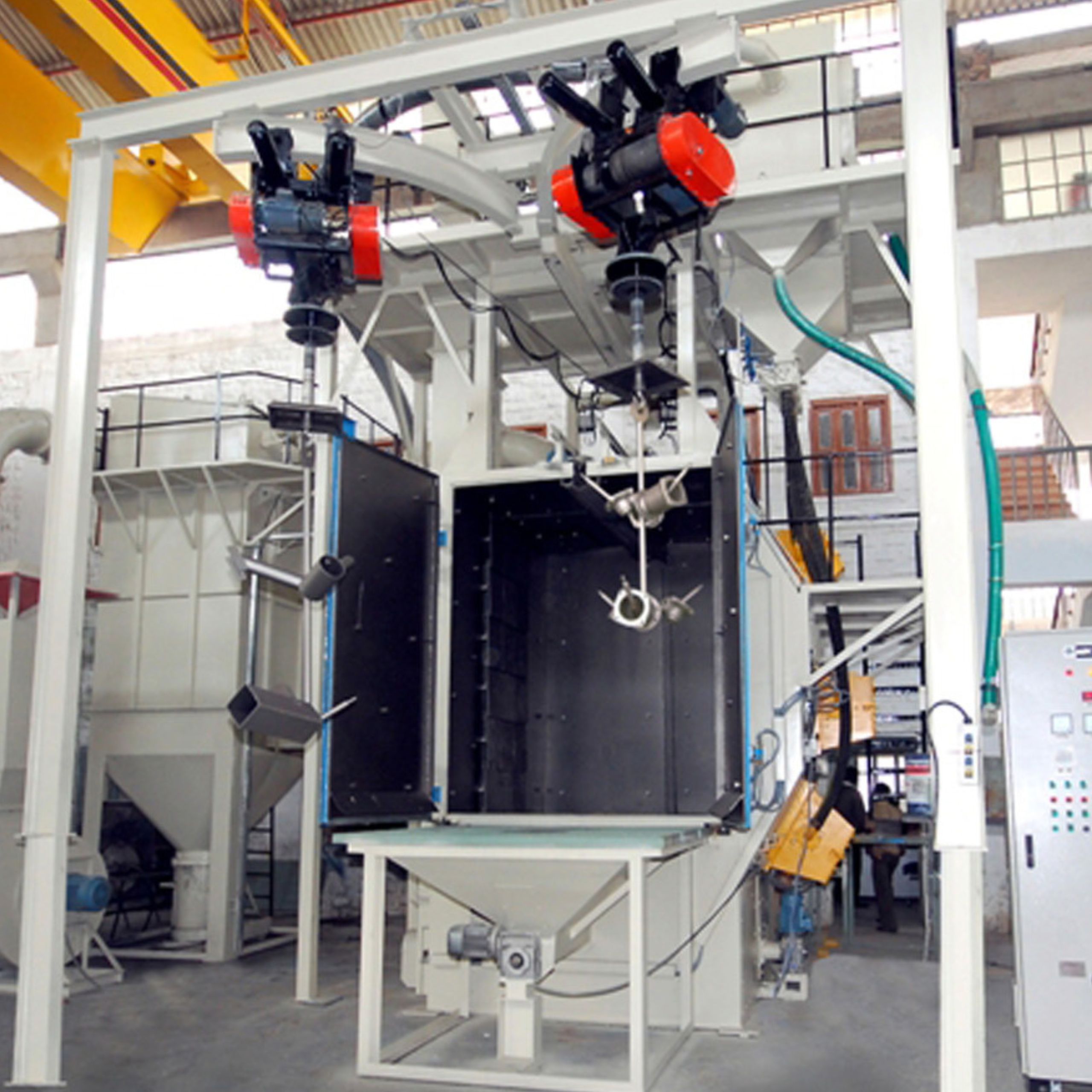

ASH ‘Y’ Hanger Type During manufacturing of Fire Extinguishers the steel material get corrosion due to environmental effect. The fire Extinguishers get blast cleaned and surface is prepared for painting. MECSHOT has recently manufactured Airless ‘Y’ Hanger Type Shot Blasting Machine for Fire Extinguishers. The Number of Fire Extinguishers Cylinders are to be blasted are hanged on hanger which provide on beams and motorized trolley to take the job inside the cabinet.
The job enters the blast cabinet where it is blasted inside the blast cabinet by two powerful upward and downward positioned blast wheels enabling to cover the entire turning circle of components. The duly blasted Fire Extinguishers Cylinders come out from the same branch of the ‘Y’ is pushed inside for blast cleaning. The opening & closing of both the doors is pneumatically operated.
Machine Type
ASH 'Y' Hanger Type
- Technical Data
Blast Media would normally be round (cast or cylindricalshots). The smaller used media in this mixture is important for equal coverage of the surface being blasted while the coarser media is important to break up any scale.
|
S.No. |
Model Name |
Envelop Size |
Blast |
Load Carrying |
Wheel Size & |
Total Power |
1. |
ASH-1 |
600 x 750 |
2 |
300 |
121⁄2” X 5 |
14.5 |
|---|---|---|---|---|---|---|
|
2. |
ASH-2 |
600 x 1000 |
2 |
300 |
121⁄2” X 5 |
14.5 |
|
3. |
ASH-3 |
600 x 1000 |
2 |
300 |
121⁄2” X 7.5 |
22.5 |
|
4. |
ASH-4 |
750 x 750 |
2 |
300 |
121⁄2” X 5 |
14.5 |
|
5. |
ASH-5 |
750 x 750 |
2 |
300 |
121⁄2” X 7.5 |
22.5 |
|
6. |
ASH-6 |
750 x 1000 |
2 |
300 |
121⁄2” X 5 |
16.5 |
|
7. |
ASH-7 |
750 x 1000 |
2 |
300 |
121⁄2” X 7.5 |
22.5 |
|
8. |
ASH-8 |
1000 x 1200 |
2 |
300 |
121⁄2” X 7.5 |
23.5 |
- Technical Specification:
|
Description |
ASH |
ASH |
ASH |
ASH |
Envelop Size Dia |
1000mm |
1200mm |
1800mm |
2000mm |
|---|---|---|---|---|
|
No. of Blast Wheel |
2 |
3 |
4 |
4 / 5 |
|
Power of Blast Wheel |
15 / 20 HP |
15 / 20 HP |
15 / 20 HP |
20 / 25 HP |
|
Load Carrying Capacity of Hanger & |
500 |
500 |
2000 |
2000 |
|
R.P.M. of Hanger |
6 |
6 |
6 |
6 |
|
Blasting Cycle Time Per Hanger |
6-8 Min Approx |
6-8 Min Approx |
6-8 Min Approx |
6-8 Min Approx |
|
Type of Dust Collector |
Pleated Bag |
Pleated Bag |
Pleated Bag |
Pleated Bag |
|
Height of the Machine |
5000mm |
5700mm |
7500mm |
7900mm |
|
Type of Conveyor (As demand) |
‘Y’ Hanger / |
‘Y’ Hanger / |
‘Y’ Hanger / |
‘Y’ Hanger / |
|
Requirement of Pit |
No |
No |
No |
No |
- Use Cases
Industrial applications
Designed for precision blasting of repetitive production components where automation, consistency, and productivity are essential.
01
Designed for precision blasting of repetitive production components where automation, consistency, and productivity are essential.
02
Designed for precision blasting of repetitive production components where automation, consistency, and productivity are essential.
03
The multi-station indexing design allows loading and unloading while blasting is in progress, improving production efficiency and reducing cycle times.
- Automotive Components
- Gears & Shafts
- Camshafts
- Brake Shoes
- Valve Components
- Piston Heads
- Foundries & Forging Units
- Aerospace Components
- Cookware Manufacturing
- Precision Engineering Parts
- Surface Preparation Operations
- Production Finishing Lines
The machine is particularly suitable for medium-volume manufacturing environments requiring repeatable blasting quality and minimal operator intervention.
- The MEC SHOT Advantage
Why buyers choose us
End-to-end support from machine selection through commissioning and after-sales service.
Custom Engineering
Configurations tailored to your component size, material, and surface-finish targets.
Quality Tested
Pre-dispatch performance checks for blasting efficiency, safety, and reliability.
Export Ready
Documentation and logistics support for domestic and international shipments.
Dedicated Support
Technical guidance for installation, operation, spares, and maintenance.
- FAQs
Frequently asked questions
Answers about this machine, installation, and support.
A Roll Etching Machine is used to generate controlled surface roughness and matte finishes on industrial rolls through abrasive blasting.
The machine combines automatic roll rotation, nozzle reciprocation, and abrasive classification to maintain uniform blasting and stable Ra values.
The machine is equipped with 4 blast guns for efficient and uniform blasting.
The machine can process components up to 300 mm diameter.
Yes. The five-satellite indexing system automatically rotates components for complete blasting coverage.
Yes. The blasting system includes automatic abrasive recovery and recycling for continuous operation.
MEC SHOT provides installation support, operator training, maintenance assistance, technical guidance, and spare parts support throughout the machine lifecycle.
