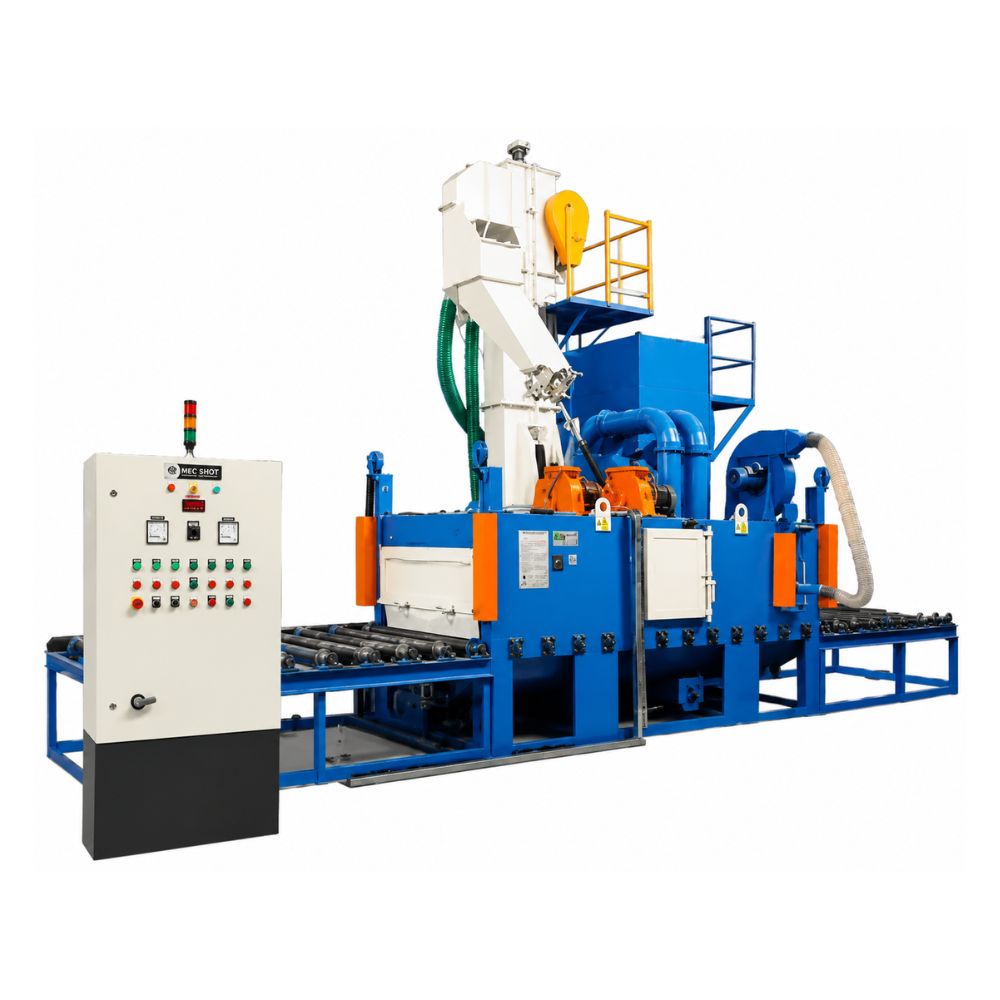

“MEC SHOT” has a wide range of Airless Shot Blasting Machine Tunnel Type with numbers of Blast Wheels to suit the Job Size and according to Production output required. This is the mostly used to Blast Clean long structural members, channels, angles, gratings, pipe fabricated components etc. for large production output for removing rust and to achieve superior quality (approx. Sa2/Sa2.5 SSPC standards -ISO 8501) finish after blast cleaning prior to painting.

The opening of the tunnel & required number of blast wheels depends upon the structure of job for attaining homogeneous finish. Major assemblies of the machine are blast wheels for giving high production output, roller conveyor for job conveying & media recovery consists of bucket elevator, screw conveyors, rotary screen separator, abrasive storage hopper etc. & pulse jet type dust collector for dust collection. The dust emission level from dust collector meets pollution control norms.

The work piece is to be placed as far as possible in the center of the guides of rollers on in feed conveyor when the rollers are not in rotating. The position of work piece is in such a way that it can rolled easily horizontal as shown in photograph, to avoid the accumulation of shots. After then it passes through entry vestibule tunnel and then enters into the blasting chamber for blast clean process. If the prefabricated structure cannot be rolled on the rollers, then it has to be kept either on predesigned fixture or a tray enabling it to travel & pass through the blast cabinet.

Blast wheel stations are arranged strategically around and located on the top of cabinet propels abrasives on the rolling work pieces. The blower arrangement continuously blow- off dust & fines accumulated on the top side of the work piece. After shot blasted homogeneously finished all around air washed work piece rolls out from exit vestibule tunnel to the out feed conveyor rollers, from where it is to be unloaded manually. The operation of sequence is detailed programmed for ease of operation and to achieve the required performance.

Technical Specification
S.No.	Particulars	AT-150-50-4W	AT-200-50-6W	AT-200-100-8W	AT-300-150-10W
1.	Passage Opening Width (mm) Height (mm)	1500 500	2000 500	2000 / 2500 1000 / 500	3000 1500
2.	No. of Blast Wheel	4	6	8	10
3.	Power of Blast Wheel	15 / 20 HP	15 / 20 HP	15 / 20 HP	15 / 20 HP
4.	Conveyor Speed (Variable)	0.5 - 3.0 Mtr./Min	0.5 - 3.0 Mtr./Min	0.5 - 3.0 Mtr./Min	0.5 - 3.0 Mtr./Min
5.	Roller Pitch	900	900	900	900
6.	Height of the machine	6500mm	6900mm	7700mm	8000
7.	Type of Dust Collector	Pleated Bag	Pleated Bag	Pleated Bag	Pleated Bag
8.	Blown-off Device	Provided	Provided	Provided	Provided
9.	Requirement of Pit	Yes	Yes	Yes	Yes
