SUPER Blaster – SB Machine
There Are Basically Three Established Methods Of Abrasive Blasting I.e. Induction – Suction (Supper Blaster), Director Pressure (Pressure Blaster) And Slurry Pumping (Wet Blaster).
Abrasive Capacity
150 Kg (Metallic) / 65 Kg (Sand)
Compressed Air Required
45 CFM @ 80 PSI
--- Technical Data
Specifications
The Portable Abrasive Blaster P7 is widely used for industrial cleaning, surface preparation, and finishing operations across multiple industries.
|
SUPER BLASTER (SB) |
MODEL |
SB-6060 |
SB-9182 |
SB-12090 |
|---|---|---|---|
|
Working Chamber mm |
|||
|
Height A |
600 |
775 |
900 |
|
Width B |
600 |
910 |
1200 |
|
Depth C |
600 |
820 |
900 |
|
Door Opening mm |
|||
|
Width G |
500 |
730 |
800 |
|
Height H |
500 |
675 |
800 |
|
Overall Dimension mm |
|||
|
Height D |
1660 |
2120 |
2570 |
|
Width |
800 |
1070 |
1365 |
|
Depth P |
1500 |
1400 |
1700 |
|
Dust or Mist Collector or Reclaimer Fan Motor |
|||
|
Fan Motor HP |
0.5 |
1.0 |
1.5 |
|
Fan Capacity (M³/Min) |
5.66 |
11.32 |
16.98 |
|
Fan Capacity (CFM) |
200 |
400 |
600 |
|
Filter Cloth Area (M²) |
1.0 |
2.0 |
4.0 |
|
Slurry Pump Motor (HP) |
---- |
---- |
---- |
|
Airjet Orifice mm |
*2,3 |
*3,4,5.5 |
3*,4,5.5 |
|
Blast Nozzle mm |
*6,8 |
*8,10,12 |
8*,10,12 |
|
Abrasive Storage Capacity |
|||
|
Litres (CFT) |
28(1.0) |
28(1.0) |
42(1.5) |
|
Pit Size mm |
|||
|
Width |
---- |
---- |
---- |
|
Length |
---- |
---- |
---- |
|
Depth |
---- |
---- |
---- |
|
Weight in Kg (approx.) |
250 |
380 |
490 |
|
Abrasive Feed |
Induction Suction |
- * The size supplied unless other wise specified. All motors used are 415V/3P/50Hz. specifications are for guidance & subject to change without notice.

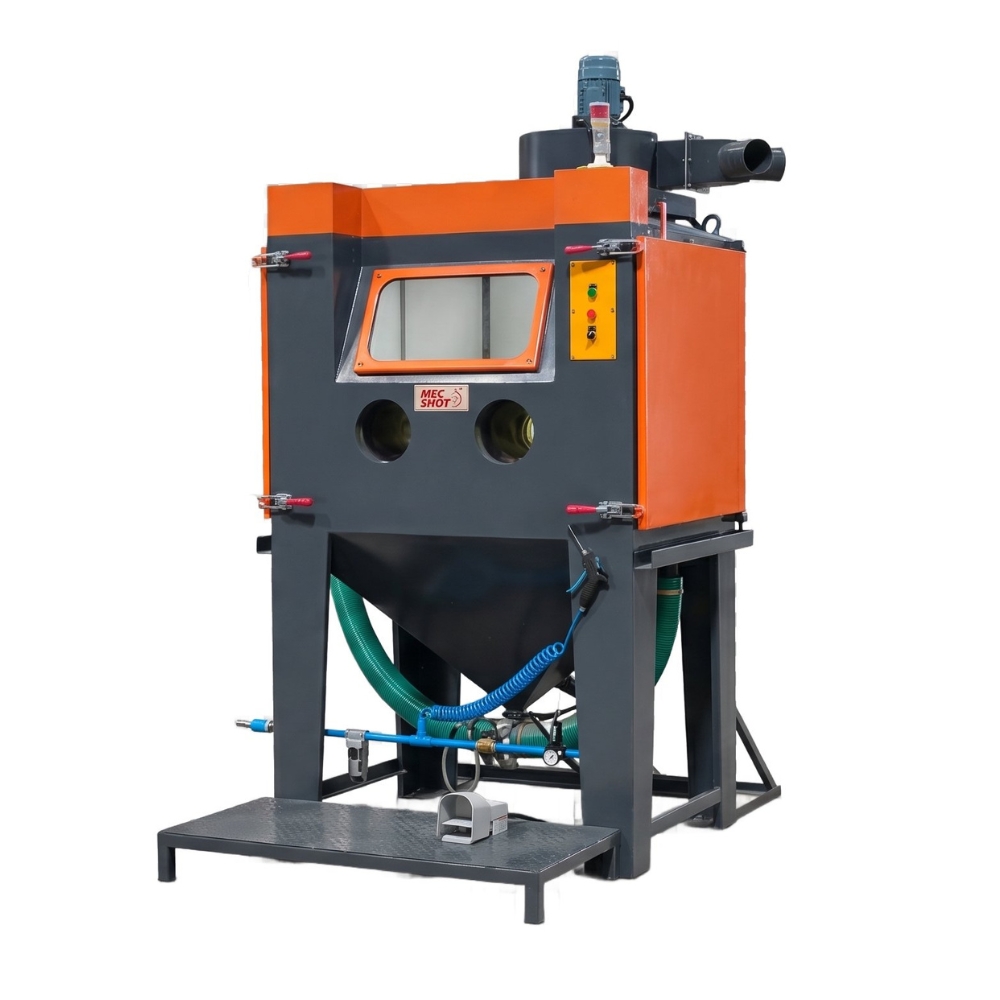

SUPER BLASTER - SB
- Works on INDUCTION-SUCTION principle of abrasive delivery. The super blaster ensures continuous working and no interruption in blasting cycle. Recommended for light and medium size components where surface is to be cleaned or deburred or to impart with fine matte finish. Useful for heat treatment shops, tool, die and mould makers and shot peening of light metal components etc. SB machines are incorporated with reclaimer which ensures uniform cleaning and finishing each time and in every next operation. This is achieved by an automatic system of abrasive cleaning and separation built into the reclaimer. Dust and debris are separated and only clean and sized abrasives are carried to blast gun-ensuring a homogeneous finishing. Most cabinets of other make do not have the reclaimer as standard practice.
- Options available on request
- Rubber lining inside walls of cabinet.
- Reversejet cartridge filter dust collector.
- Higher output Blast Gun in place of standard.
- Foot operated treadle switch for blasting ON/OFF.
- Fitted with optional accessories.
- Works on INDUCTION-SUCTION principle of abrasive delivery. The super blaster ensures continuous working and no interruption in blasting cycle. Recommended for light and medium size components where surface is to be cleaned or deburred or to impart with fine matte finish. Useful for heat treatment shops, tool, die and mould makers and shot peening of light metal components etc. SB machines are incorporated with reclaimer which ensures uniform cleaning and finishing each time and in every next operation. This is achieved by an automatic system of abrasive cleaning and separation built into the reclaimer. Dust and debris are separated and only clean and sized abrasives are carried to blast gun-ensuring a homogeneous finishing. Most cabinets of other make do not have the reclaimer as standard practice.
Need help choosing?
- +91-0291-2740609
- [email protected]
- Mon – Sat · 9:00 AM – 7:00 PM
Custom Engineering
Configurations tailored to your component size, material, and surface-finish targets.
Quality Tested
Pre-dispatch performance checks for blasting efficiency, safety, and reliability.
Export Ready
Documentation and logistics support for domestic and international shipments.
Dedicated Support
Technical guidance for installation, operation, spares, and maintenance.
- FAQs
Frequently asked questions
Answers about this machine, installation, and support.
The SUPER BLASTER (SB) is a suction-type abrasive blasting cabinet that works on the Induction-Suction principle. It is designed for continuous surface cleaning, deburring, matte finishing, and light shot peening applications.
The machine is widely used in heat treatment shops, tool rooms, die and mould manufacturing, fabrication units, automotive, aerospace, engineering workshops, and metal finishing industries.
The SUPER BLASTER is suitable for steel, stainless steel, aluminum, brass, cast iron, and other metal components, especially light and medium-sized parts requiring cleaning or surface preparation.
The integrated abrasive reclaimer automatically separates dust, debris, and broken abrasive particles, ensuring that only clean and properly sized abrasives are reused for consistent surface finishing.
It can efficiently perform rust removal, paint removal, scale cleaning, deburring, surface preparation before coating, and fine matte finishing with uniform results.
The SUPER BLASTER is available in SB-6060, SB-9182, and SB-12090, offering different working chamber sizes to suit various component dimensions and production requirements.
Yes. Optional accessories include rubber-lined cabinet walls, reverse-jet cartridge filter dust collector, higher-output blast gun, foot-operated treadle switch, and other customized configurations.
The machine uses an Induction-Suction abrasive feeding system, which provides smooth, continuous blasting without interruptions while minimizing abrasive consumption.
Yes. Its ergonomic cabinet design, viewing window, glove ports, and automatic abrasive recovery system make it easy to operate, maintain, and clean, reducing downtime.
Unlike many standard blasting cabinets, the SUPER BLASTER comes with a built-in abrasive reclaimer that delivers consistent blasting quality, reduced abrasive waste, lower operating costs, and improved productivity.
