Airless ‘Close’ Loop Type

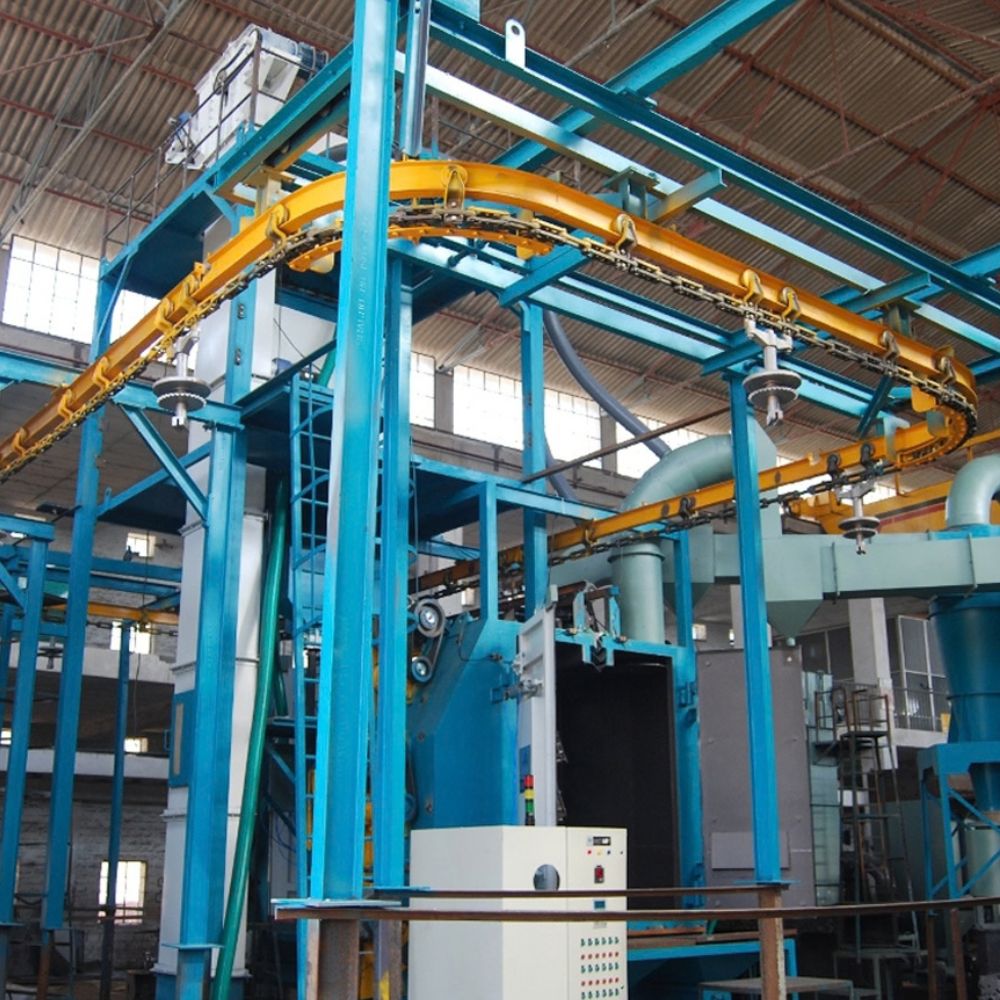

ASH Close Loop Hanger Type The machine is designed for automatic efficient shot blasting of Job. The Job is loaded on the Hangers of Over Head Close Loop Type. The Job is loaded from right side & fed in the Blasting Cabinet where it gets blasted inside the chamber. The speed of the Monorail Conveyor Rollers drives (Customers Scope). The cabinet is protected from erosion by LINERS (Hardened wear plates), mounted on the sidewalls, top.

The Dust collector, Screw Conveyor, Cross Screw Conveyor, Bucket Elevator, Rotary Screen & Blast Wheels motors (ONE AFTER OTHER TO PREVENT OVER LOADING) are switched ON in sequence. After selecting the Blasting Switch the shots will be fed automatically by Dribble Valves for all the wheels operated by Solenoid Valve and Pneumatic Cylinders opening mechanism. These shots are propelled on the moving components at high velocity thereby blasting them.
